M4H-GR-GEARED
MOTOR
|
|
|
▶
Possible to product for needs of ratio beside
bellow chart
아래 표 이외에 감속비 요구 사항
제작 가능
|
|
|
|
MOTOR
SPECIFICATION
|
| DESCRIPTION |
CURRENT |
SPEED |
TORQUE |
OUTPUT |
EFF |
| A |
RPM |
g-cm |
W |
% |
| NO
LOAD |
6V |
0.20 |
6200 |
|
|
|
|
12V
|
0.12
|
6200
|
|
|
|
| 24V |
0.06 |
6200 |
|
|
|
| AT
MAX.EFF |
6V |
0.79 |
5140 |
54.5 |
2.87 |
60.67 |
|
12V
|
0.47
|
5100
|
59.81
|
3.14
|
55.60
|
| 24V |
0.212 |
5000 |
61.76 |
3.17 |
62.31 |
| AT
STALL |
6V |
3.50 |
|
320 |
|
|
|
12V
|
2.20
|
|
340
|
|
|
| 24V |
0.9 |
|
320 |
|
|
|
|
|
|

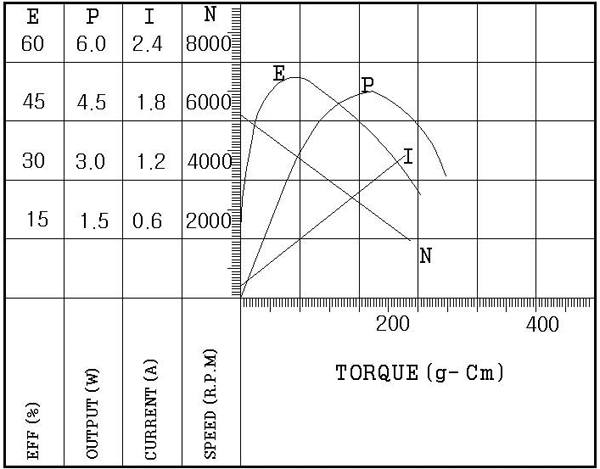

D.C
6V
|
|
|
|

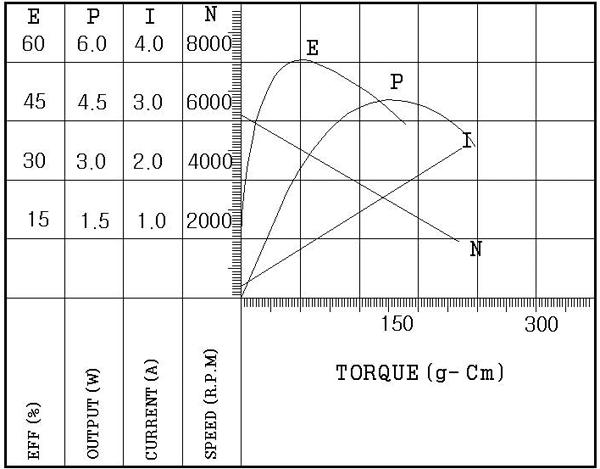

D.C
12V
|
|
|
|

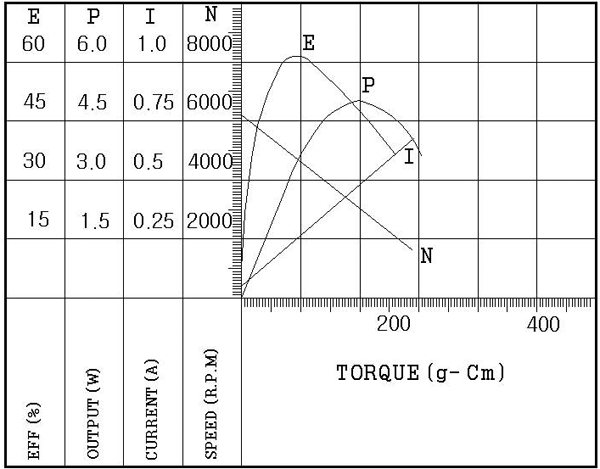

D.C
24V
|
|
GEARED
MOTOR SPECIFICATION
|
| RATIO |
V |
1/37 |
1/50 |
1/62 |
1/73 |
1/86 |
1/100 |
1/125 |
1/150 |
1/180 |
1/200 |
1/255 |
1/250 |
1/280 |
1/315 |
| NO
LOAD(RPM) |
6V |
167 |
124 |
100 |
85 |
72 |
62 |
49 |
41 |
34 |
31 |
27 |
24 |
22 |
19 |
|
12V
|
167
|
124
|
100
|
85
|
72
|
62
|
49
|
41
|
34
|
31
|
27
|
24
|
22
|
19
|
| 24V |
162 |
124 |
100 |
85 |
72 |
62 |
49 |
41 |
34 |
31 |
27 |
24 |
22 |
19 |
| AT
MAXEFF |
6V |
139 |
102 |
83 |
70 |
59 |
51 |
41 |
34 |
28 |
25 |
22 |
20 |
18 |
16 |
|
12V
|
137
|
102
|
82
|
70
|
59
|
51
|
40
|
34
|
28
|
25
|
22
|
20
|
18
|
16
|
| 24V |
135 |
100 |
80 |
68 |
58 |
50 |
40 |
33 |
27 |
25 |
22 |
20 |
17 |
16 |
| TORQUE(Kg-cm) |
6V |
1.4 |
1.7 |
2.2 |
2.6 |
3.0 |
3.5 |
4.4 |
5.3 |
6.4 |
7.1 |
8.0 |
8.9 |
10.0 |
10.0 |
|
12V
|
1.6
|
1.9
|
2.4
|
2.8
|
3.3
|
3.9
|
4.9
|
5.8
|
7.0
|
7.8
|
8.8
|
9.8
|
10.0
|
10.0
|
| 24V |
1.6 |
2.0 |
2.5 |
2.9 |
3.4 |
4.0 |
5.0 |
6.0 |
7.2 |
8.0 |
9.1 |
10.0 |
10.0 |
10.0 |
|
