Application : Microwave
oven, Fan, FA machine, Lighting equiment,
etc.
▶ Specification
| Model |
Rated
voltage |
Input
power |
Shaft
Speed |
Stalling
torque
(Kgf-Cm) |
Direction |
| 50Hz |
60Hz |
50Hz |
60Hz |
| NYM-16H |
AC
24V |
3.5
W |
3.0
W |
2.5
rpm
3.3 rpm
4.2 rpm
5.0 rpm |
3.0
rpm
4.0 rpm
5.1 rpm
6.0 rpm |
7.0
Min |
CW
(시계)
CCW (반시계)
FREE (양방향) |
| AC100V |
3.5
W |
3.0
W |
6.5
Min |
| AC110~120T |
3.2
W |
2.8
W |
5.5
Min |
| AC220~240V |
3.0
W |
2.5
W |
4.5
Min |
▶

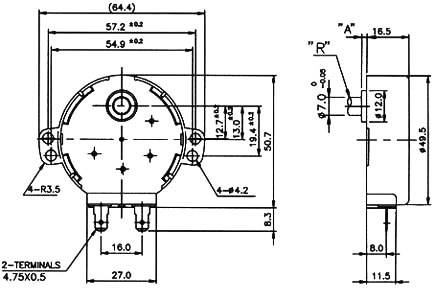

Material of Shaft("R"),
Bushing("A") Dimensions
|
Shaft("R"),
Materials
|
Bushing("A")
|
|
|
t
2.0
t 4.0
t 8.4
|
▶
Weight : about 80g
|
