¢º
Application : Microwave
oven, Fan, FA machine, Lighting
equiment, etc.
¢º Specification
| Model |
Rated
voltage |
Input
power |
Shaft
Speed |
Stalling
torque
(kgf-Cm) |
Direction |
| 50Hz |
60Hz |
50Hz |
60Hz |
| NYM-23H |
AC
24V
AC100V
AC110~120V
AC220~240V
|
4.0
W
Max |
3.5
W
Max |
3.8
rpm
|
4.5
rpm
|
12.0
Min
|
CW
(½Ã°è)
CCW (¹Ý½Ã°è)
FREE (¾ç¹æÇâ) |
|
5.2
rpm
|
6.2
rpm
|
8.0
Min
|
|
7.5
rpm
|
9.0
rpm
|
6.0
Min
|
|
12.5
rpm
|
15.0
rpm
|
2.5
Min
|
|
18.8
rpm
|
22.5
rpm
|
1.5
Min
|
|
45.0
rpm
|
54.0
rpm
|
1.0
Min
|
|
75.0
rpm
|
90.0
rpm
|
0.8
Min
|
|
150.0
rpm
|
180.0
rpm
|
0.5
Min
|

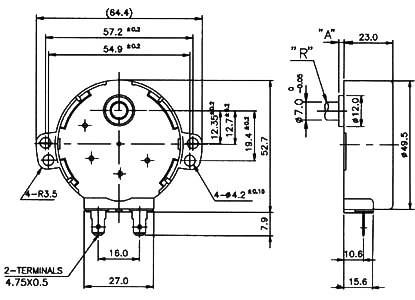

¢º
Material of Shaft("R"),
Bushing("A") Dimensions
|
Shaft("R"),
Materials
|
Bushing("A")
|
|
|
t
2.0
t 4.0
t 8.4
|
¢º
Weight : about 120g
