20-P
GEARD MOTOR
|
▶
Possible to product for needs of ratio beside
bellow chart
아래 표 이외에 감속비 요구 사항
제작 가능
|
|
|
|
|
|

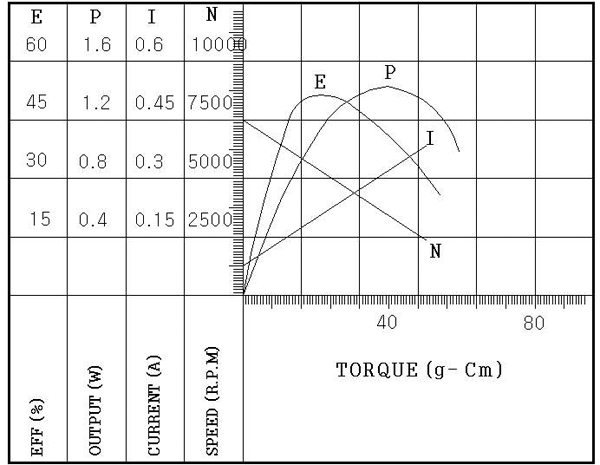

MOTOR
SPECIFICATION
|
| DESCRIPTION |
CURRENT |
SPEED |
TORQUE |
OUTPUT |
EFF |
| A |
RPM |
g-cm |
W |
% |
| NO
LOAD |
12V |
0.08 |
7400 |
|
|
|
| AT
MAX.EFF |
12V |
0.16 |
5650 |
17.0 |
1.0 |
51.6 |
| AT
STALL |
12V |
0.52 |
|
74.0 |
|
|
|
|
|
|
D.C
12V
|
|
GEARED
MOTOR SPECIFICATION
|
| RATIO |
V |
1/
12 |
1/
16 |
1/
30 |
1/
45 |
1/
70 |
1/
80 |
1/
90 |
1/
100 |
1/
160 |
1/
206 |
1/
260 |
1/
300 |
1/
375 |
1/ 80
|
1/ 610
|
1/ 780
|

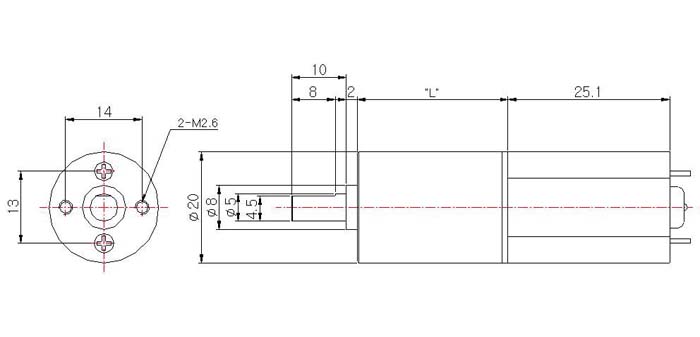

| "L"-SIZE |
20.1 |
21.7 |
23 |
25.1
|
NO
LOAD
(RPM) |
12V |
616 |
462 |
246 |
164 |
105 |
92 |
82 |
74 |
46 |
36 |
28 |
24 |
19 |
15
|
12
|
9.5
|
ON
LOAD
(RPM) |
12V |
470 |
353 |
188 |
125 |
80 |
70 |
62 |
56 |
35 |
27 |
21 |
18 |
15 |
11
|
9.2
|
7.2
|
TORQUE
(Kg-cm) |
12V |
0.1 |
0.2 |
0.3 |
0.5 |
0.7 |
0.8 |
0.9 |
1.0 |
1.4 |
1.8 |
2.0 |
2.0 |
2.0 |
2.0
|
2.0
|
2.0
|
|
Φ20-P-GM
