50-GR42B-GEARED MOTOR

▶ Possible to product for needs of ratio beside bellow chart
아래 표 이외에 감속비 요구 사항 제작 가능

MOTOR SPECIFICATION
DESCRIPTION CURRENT SPEED TORQUE OUTPUT EFF
A RPM g-cm W %
NO LOAD 12V 0.42 4500
24V 0.296 4500
AT MAX.EFF 12V 1.03 3530 180 6.5 55.5
24V 0.56 4060 219 9.1 68.5
AT STALL 12V 3.29   714
24V 2.87   1299

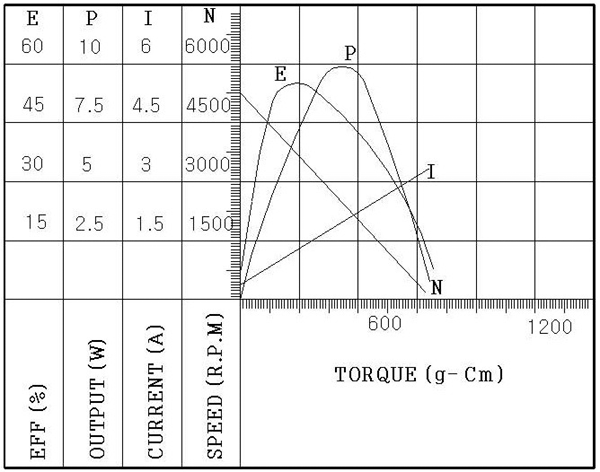

D.C 12V

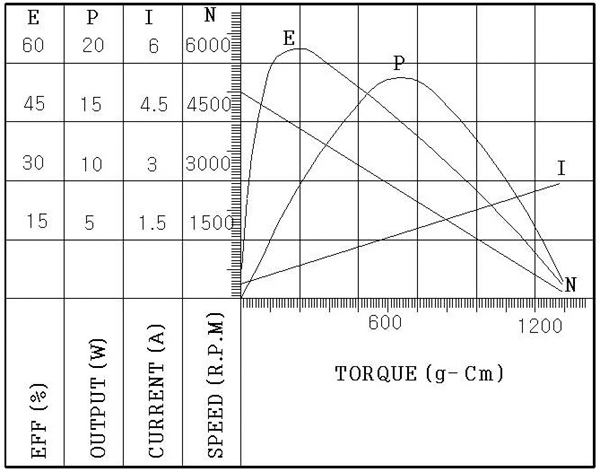

D.C 24V

GEARED MOTOR SPECIFICATION
 RATIO V 1/ 6 1/ 10 1/ 18 1/ 30 1/ 56 1/ 62 1/ 80 1/ 100 1/ 120 1/ 150 1/ 195 1/ 250 1/ 280 1/ 360 1/ 420 1/ 540

1/ 980

1/ 1260

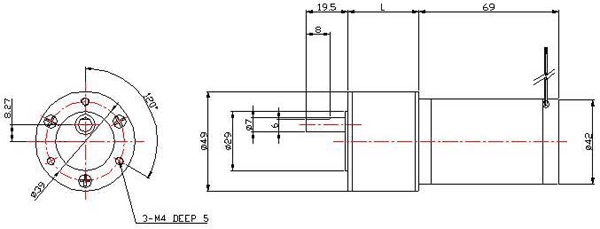

"L"-SIZE 34.2

38.2

42.2

46.2
NO LOAD(RPM) 12V 750 450 250 150 80 72 56 45 37 30 23 18 16 12 10.7 8.3

4.6

3.6
24V 750 450 250 150 80 72 56 45 37 30 23 18 16 12 10.7 8.3

4.6

3.6
ON LOAD(RPM) 12V 588 353 196 117 63 57 44 35 29 23 18 14 12 9.8 8.4 6.5

3.6

2.8
24V 676 406 225 135 72 65 50 40 33 27 20 16 14 11 9.6 7.5

4.1

3.2
TORQUE(Kg-cm) 12V 0.8 1.3 2.3 3.9 6.6 7.3 9.4 11.8 12.7 15.0 15.0 15.0 15.0 15.0 15.0 15.0

15.0

15.0
24V 1.0 1.6 2.8 4.7 8.0 8.9 11.5 14.3 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0

15.0

15.0
