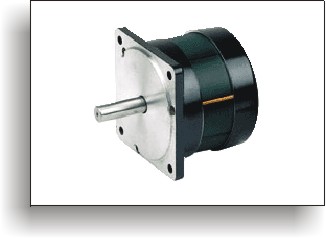

BLDC
□90
|
|

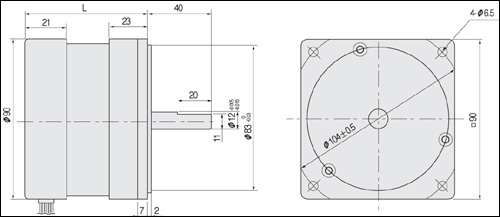

MOTOR DEMENSION
|
|
|
|
MOTOR SPECIFICATION
| MODEL |
Rated |
Weight
(kg) |
Length
L
(mm) |
Valtage
(V) |
Output
(W) |
Current
(A) |
Speed
(RPM) |
Torque
(kgf-cm) |
Rating |
| BD90-N012020 |
12 |
20 |
2.7 |
1,500/3.000 |
1.3/0.65 |
cont |
2.1 |
58 |
| BD90-N012030 |
12 |
30 |
4.1 |
1,500/3.000 |
1.95/0.98 |
cont |
2.3 |
68 |
| BD90-N012040 |
12 |
40 |
5.4 |
1,500/3.000 |
2.6/1.3 |
cont |
2.5 |
78 |
| BD90-N024030 |
24 |
30 |
2 |
1,500/3.000 |
1.95/0.98 |
cont |
2.1 |
58 |
| BD90-N024040 |
24 |
40 |
2.7 |
1,500/3.000 |
2.6/1.3 |
cont |
2.3 |
68 |
| BD90-N024060 |
24 |
60 |
4.1 |
1,500/3.000 |
3.3/1.6 |
cont |
2.5 |
78 |
| BD90-N220090 |
220 |
90 |
0.7 |
1,500/3.000 |
5.9/2.9 |
cont |
2.1 |
58 |
| BD90-N220120 |
220 |
120 |
0.9 |
1,500/3.000 |
7.8/3.9 |
cont |
2.3 |
68 |
| BD90-N220150 |
220 |
150 |
1.1 |
1,500/3.000 |
9.8/4.9 |
cont |
2.5 |
78 | |
|
|
|
