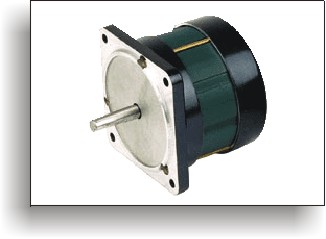

BLDC
□80
|
|

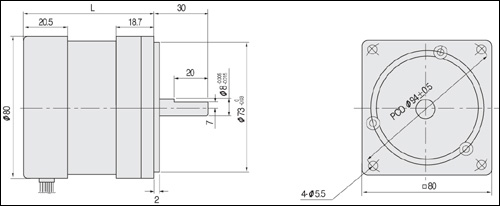

MOTOR DEMENSION
|
|
|
|
MOTOR SPECIFICATION
| MODEL |
Rated |
Weight
(kg) |
Length
L
(mm) |
Valtage
(V) |
Output
(W) |
Current
(A) |
Speed
(RPM) |
Torque
(kgf-cm) |
Rating |
| BD80-N012010 |
12 |
10 |
1.4 |
1,500/3.000 |
0.65/0.33 |
cont |
1.4 |
53.2 |
| BD80-N012015 |
12 |
15 |
2.1 |
1,500/3.000 |
0.98/0.49 |
cont |
1.5 |
63.2 |
| BD80-N012020 |
12 |
20 |
2.8 |
1,500/3.000 |
1.30/0.65 |
cont |
1.6 |
73.2 |
| BD80-N024015 |
24 |
15 |
1 |
1,500/3.000 |
0.98/0.49 |
cont |
1.4 |
53.2 |
| BD80-N024025 |
24 |
25 |
1.7 |
1,500/3.000 |
6.6/3.3 |
cont |
1.5 |
63.2 |
| BD80-N024035 |
24 |
35 |
2.4 |
1,500/3.000 |
2.3/4.6 |
cont |
1.6 |
73.2 |
| BD80-N220040 |
220 |
40 |
0.4 |
1,500/3.000 |
2.6/1.3 |
cont |
1.4 |
53.2 |
| BD80-N220060 |
220 |
60 |
0.5 |
1,500/3.000 |
3.9/1.95 |
cont |
1.5 |
63.2 |
| BD80-N220090 |
220 |
90 |
0.7 |
1,500/3.000 |
5.9/2.9 |
cont |
1.6 |
73.2 | |
|
|
|
