GEARED
BLDC
□90
|
|

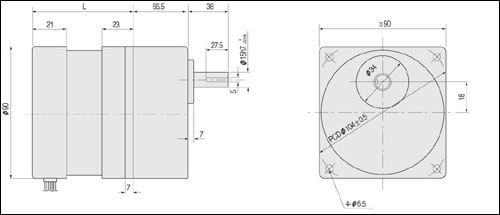

MOTOR DEMENSION
|
|
|
|
MOTOR SPECIFICATION
| MODEL |
Rated |
Weight
(kg) |
Length
L
(mm) |
Valtage
(V) |
Output
(W) |
Current
(A) |
Speed
(RPM) |
Torque
(kgf-cm) |
Rating |
| BG90-N012020 |
12 |
20 |
2.7 |
1-1.000 |
1.95-300 |
cont |
3.1 |
58 |
| BG90-N012030 |
12 |
30 |
4.1 |
1-1.000 |
2.94-300 |
cont |
3.3 |
68 |
| BG90-N012040 |
12 |
40 |
5.4 |
1-1.000 |
3.9-300 |
cont |
3.5 |
78 |
| BG90-N024030 |
24 |
30 |
2 |
1-1.000 |
2.94-300 |
cont |
3.1 |
58 |
| BG90-N024040 |
24 |
40 |
2.7 |
1-1.000 |
3.9-300 |
cont |
3.3 |
68 |
| BG90-N024060 |
24 |
60 |
4.1 |
1-1.000 |
4.8-300 |
cont |
3.5 |
78 |
| BG90-N220090 |
220 |
90 |
0.7 |
1-1.000 |
8.7-300 |
cont |
3.1 |
58 |
| BG90-N220120 |
220 |
120 |
0.9 |
1-1.000 |
11.7-300 |
cont |
3.3 |
68 |
| BG90-N220150 |
220 |
150 |
1.1 |
1-1.000 |
14.7-300 |
cont |
3.5 |
78 | |
|
|
|
